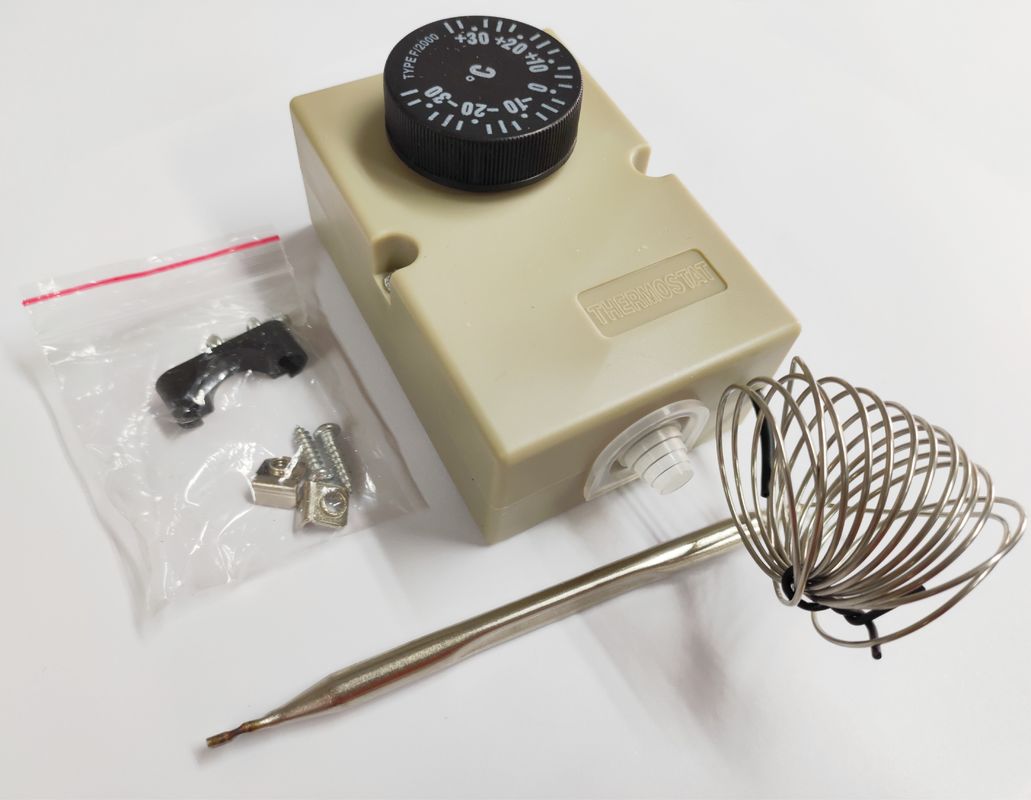

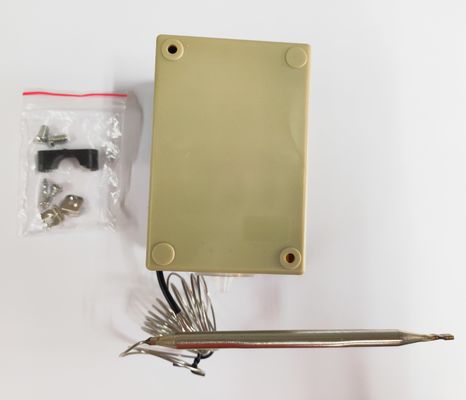

Refrigeration Parts Capillary Thermostat Kitchen Appliance Spare Parts Capillary Thermostat Model F2000
Product Details:
| Place of Origin: | china |
Payment & Shipping Terms:
| Delivery Time: | 20WORKING DAY |
|---|
|
Detail Information |
|||
| Email: | Sales@refacthvac.com | Type: | Capillary Thermostat |
|---|---|---|---|
Product Description
Model:F2000
Product Size:5.7*3.5CM (Body)
Type: mechanical thermostat, refrigerator thermostat, freezer thermostat, display cabinet thermostat
Function:Temperature adjustment
Cold and warm spot: plus or minus 35 degrees (self-adjustable)
Capillary length: 2M
Whether with temperature package: with temperature package
Temperature package size: diameter 6MM * 100MM
Applicable voltage: 250V
Current: 16A 50/60HZ
Features:Capillary length can be produced according to customer requirements.
Features: cooling and heating functions
Optional: two feet, three feet

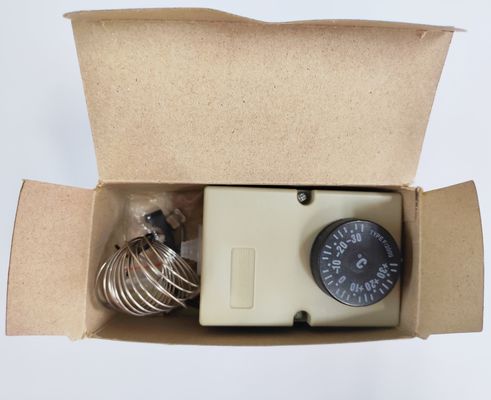

Packaging: single small color box packaging
Origin:China
Capillary thermostats are widely used in electric appliances like electric water heater, electric heater, electric boiler, washing machine, electric oven, deep fryer,air fryer.
All parameters are subject to the drawing, if you need more information please contact us
Principle and performance: When the temperature of the object to be controlled changes so that the thermostat temperature-sensitive part of the mass to produce the corresponding physical phenomenon of thermal expansion and contraction (mass volume change), and the temperature-sensitive part of the membrane box connected together to produce expansion or contraction. Through the principle of leverage, it drives the switch on and off action to achieve the purpose of constant temperature.WG series liquid expansion type thermostat has the performance characteristics of accurate temperature control, stable and reliable, small temperature difference between start and stop, large temperature control adjustment range, large overload current and so on.
